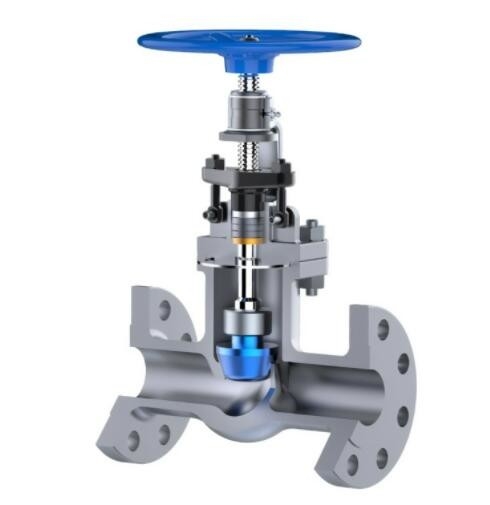

SS316 Flanged Globe Valve With Flange End 150 Class Material Class 316

SS316 Flanged Globe Valve With Flange End 150 Class , Material Class 316

Key Features:

• Detailed Product Description

  Product Name:	Flanged Globe Valve	Application:	Oil, Gas, Water, Steam Etc.,
  Size:	DN15 ~DN250	Pressure:	PN16~160/ 150lbs~2500lbs/JIS 10K/20K
  Standard:	API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K	Temperature:	-29~425 C
  Body:	Stainless Steel	Stem:	Stainless Steel/ 2Cr13 /SS304
  Seat:	F6 / As Request
  High Light:	cast steel globe valve , 2 inch globe valve





  SS Globe Valve With Flange End 150 Class, Material Class 316









  GLOBE VALVE,



  DN: 100MM, PN: 16 KGF/CM2, FLUID: ABRASIE PRODUCTS,



  TEMP: - 40 TO 300 DEG CENT. MAX,



  ENDS: FLANGED, OPERATION: HAND WHEEL OPERATED, COVER: BOLTED,



  MATERIALS:



  BODY/COVER/STEM: STEEL,



  DISC/WEDGE: STEEL, SEALING SURFACE: INTEGRAL,









  The globe valve is designed reference to advanced internal and international standard.Adopting different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.







  selection of possible applications:

  (industry) (power station)

  (flue gas puerification plant) (gas supply)

  (vacuum facilities) (ammonia)

  (hot water) (cllling&freezing systme)

  (heating technology) (steam system)





  Features

  Outside Screw and Yoke (OS & Y), Rising Stem

  Bolted Bonnet

  Conic Disc

  Extended Bonnet for Cryogenic Services

  Impact hand wheel optional

  Gear Optional

  Specifications

  Design: ASME B16.34/BS 1873

  Face to Face: ASME B16.10

  End to End: ASME B16.10

  End Flange: ASME B16.5

  BW End: ASME B16.25

  Test: API 598

  Special: NACE MR-01-75

  Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



  Products performance specification



  Parts	Materials
  Body	ASTM A216 GR.WCB
  Seat Ring	ASTM A105 + Stellite Faced
  Disc	ASTM A105 + 13Cr Faced
  Disc Thrust Plate	ASTM A276 Type 420
  Disc Nut	ASTM A276 Type 410
  Stem	ASTM A182 GR.F6
  Bonnet Bolt Nuts	ASTM A194 GR.2H
  Bonnet Bolts	ASTM A193 GR.B7
  Gasket	Soft Iron + Graphite
  Backseat Bushing	ASTM A276 Type 410
  Stem Packing	Braided Graphite & Die formed Graphite Ring
  Bonnet	ASTM A216 GR.WCB
  Eyebolt Pins	Carbon Steel
  Gland	ASTM A276 Type 410
  Gland Flange	ASTM A216 GR.WCB
  Gland Eye Bolts	ASTM A307 GR.B
  Eyebolt Nuts	ASTM A194 GR.2H
  Yoke Bush	ASTM A439 GR.D-2
  Screw	Carbon Steel
  Hand Wheel	Ductile Iron
  Hand Wheel Nut	ASTM A194 GR.2H
  Washer	Carbon Steel
  Yoke	ASTM A216 GR.WCB
  Yoke Pan Bolt Nuts	ASTM A194 GR.2H
  Yoke Pan Bolt	ASTM A193 GR.B7
  Bearing	Steel
  Lantern Ring On Request	ASTM A276 Type 410





  Main Dimensions



  ASME Pressure Class 150 Lb-Dimensions and Weights

  NPS	in	2	2.5	3	4	5	6	8	10	12	14	16
  d	mm	51	64	76	102	127	152	203	254	305	337	387
  L-L1	in	8	8.5	9.5	11.5	14	16	19.5	24.5	27.5	31	36
  (RF-BW)	mm	203	216	241	292	356	406	495	622	698	787	914
  L2	in	8.5	9	10	12	14.5	16.5	20	25	28	31.5	36.5
  (RTJ)	mm	216	229	254	305	368	419	508	635	711	800	927
  H	in	13.43	14.45	14.76	19.02	21.14	20.35	23.23	29.69	37.05	42.72	38.03
  (open)	mm	341	367	375	483	537	517	590	754	941	1085	966
  W	in	7.87	9.84	9.84	11.81	11.81	13.78	15.75	17.72	25.2	25.2	18.11
  	mm	200	250	250	300	300	350	400	450	640	640	460
  WT	BF	22	29	42	64	77	105	154	288	507	617	810
  (Kg)	BW	19	25	34	49	65	82	131	249	430	580	763



  ASME Pressure Class 300 Lb-Dimensions and Weights

  NPS	in	2	2.5	3	4	5	6	8	10	12
  d	mm	51	64	76	102	127	152	203	254	305
  L-L1	in	10.5	11.5	12.5	14	15.75	17.5	22	24.5	28
  (RF-BW)	mm	267	292	318	356	400	444	559	622	711
  L2	in	11.12	12.12	13.12	14.62	16.37	18.12	22.62	25.12	28.62
  (RTJ)	mm	283	308	333	371	416	460	575	638	727
  H	in	13.74	14.8	16.93	19.13	22.05	24.33	36.89	37.36	39.17
  (open)	mm	349	376	430	486	560	618	937	949	995
  W	in	7.87	9.84	9.84	13.78	15.75	17.72	2.05	25.2	18.11
  	mm	200	250	250	350	400	450	560	640	460
  WT	BF	31	43	57	86	130	168	280	385	724
  (Kg)	BW	26	38	44	68	110	138	228	329	618



  ASME Pressure Class 300 Lb-Dimensions and Weights



  NPS	in	2	2.5	3	4	6	8	10	12
  d	mm	51	64	76	102	152	200	248	298
  L-L1	in	11.5	13	14	17	22	26	31	33
  (RF-BW)	mm	292	330	356	432	559	660	787	838
  L2	in	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12
  (RTJ)	mm	295	333	359	435	562	664	791	841
  H	in	16.73	19.76	20.51	24.41	34.88	36.69	40.94	50.39
  (open)	mm	425	502	521	620	886	932	1040	1280
  W	in	9.84	11.81	13.78	17.72	22.05	18.11	24.02	29.92
  	mm	250	300	350	450	560	460	610	760
  WT	BF	39	58	73	120	327	482	700	900
  (Kg)	BW	33	48	61	95	261	385	588	795

















  Brief introduction:

  The globe valve is designed reference to advanced internal and international standard. The body adopt

  sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



  Apply from CLASS150 to CLASS1500, and -29℃～425℃(steel), -40℃～550℃(stainless steel).



  Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and

  other medium.



  Features:

  - Back seal

  Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



  - Resist friction

  Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite alloy

  inlaid or other material responding to the users’ requests .



  - Precise design:

  Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

  rigid and flow ability .



  Mail part & material

  	Item Name of parts	material
  1	Body	WCB, CF8, CF8M
  2	Seat	2Cr13,25+ satellite
  3	Disc	2Cr13, 304, 25+satelite
  4	Stem	2Cr13, 304, 304L
  5	Gasket	Graphite+304, Graphite+08 steel
  6	Bonnet	WCB,CF8,CF8M
  7	Packing	Graphite,PTFE
  8	Hand wheel	HT250,QT450







  Technical Specification

  -Nominal diameter: 2”-12”

  -Applicable Temperature: -29℃～425℃(steel) -40℃～550℃

  (stainless steel)

  -Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

  -Applicable Medium: water ,gas,oil,and other causticity medium.

  Applications Standard

  -Manufacture standard : ANSI B16.34

  -Face to face dimension: ANSI B 16.10

  -Flange dimension: ANSI B 16.5

  -Test: API 598







  Description:



  Main external and connection dimension





  	CLASS150
  size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
  L,L1-RF.BW(mm)	203	216	214	292	330	356	495	622	698
  L2-RTJ(mm)	216	229	254	305	343	368	508	635	711
  H(mm)	330	390	410	475	540	585	725	825	940
  K(mm)	200	250	250	300	350	350	450	500	600
  Weight(Kg)	23	29	40	59	95	115	178	268	385



  	CLASS300
  size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
  L,L1-RF.BW(mm)	267	292	318	355	400	440	533	622	711
  L2-RTJ(mm)	283	308	333	371	416	460	549	638	727
  H(mm)	350	425	485	520	565	655	825	920	1155
  K(mm)	200	250	300	300	350	350	500	600	700
  Weight(Kg)	30	45	60	83	135	162	265	375	525



  	CLASS600
  size(in)	2"	2-1/2"		3"		4"		5"		6"		8"		10"
  L,L1-RF.BW(mm)	292	330		356		432		508		559		660		787
  L2-RTJ(mm)	295	333		359		435		511		562		664		791
  H(mm)	420	490		550		590		620		700		950		1140
  K(mm)	250	300		300		350		500		500		600		600
  Weight(Kg)	39	61		76		122		210		245		447		692
  	CLASS900
  size(in)	2"		2-1/2"		3"		4"		5"		6"		8"
  L,L1-RF.BW(mm)	368		419		381		457		559		610		737
  L2-RTJ(mm)	371		422		384		460		562		613		740
  H(mm)	495		540		600		655		670		780		1050
  K(mm)	300		350		350		500		500		350*		350*
  Weight(Kg)	96		79		117		178		305		355		730
  Note: Use "*", mean have fixed the gear box.



  	CLASS1500
  size(in)	2"	2-1/2"	3"	4"	6"
  L,L1-RF.BW(mm)	368	419	470	546	705
  L2-RTJ(mm)	371	422	473	549	711
  H(mm)	550	582	625	750	925
  K(mm)	300	350	400	450	600
  Weight(Kg)	116	125	145	210	475

Packing Details:

We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.


Delivery Details: According to the order, 7~60days
