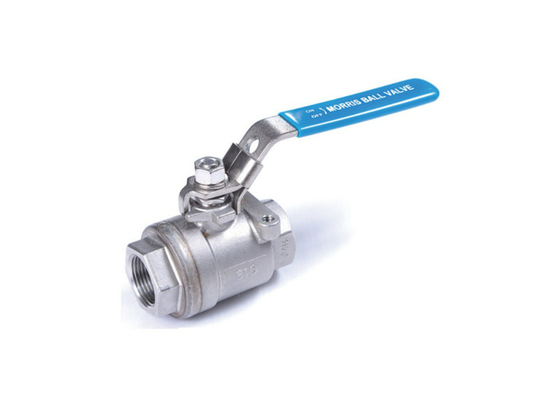

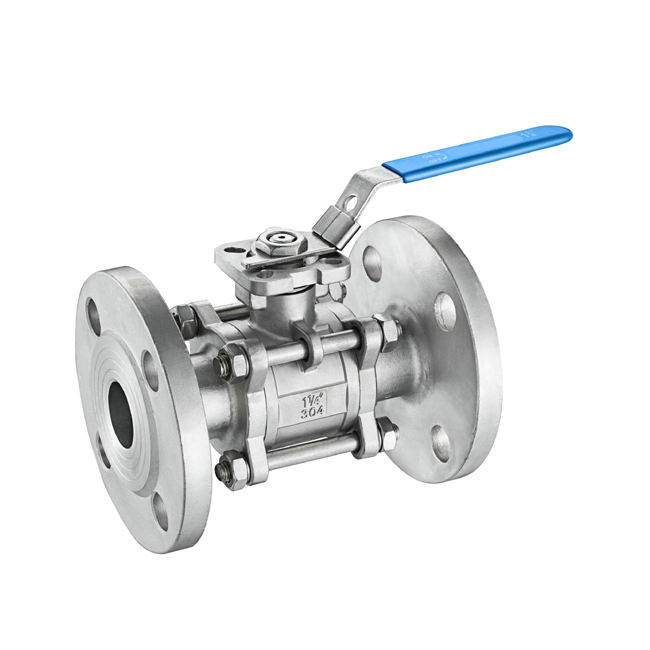

CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve

CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve

  • CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve
  • CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve
  • CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve
CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: Floating Ball Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15-20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS
Contact Now
Detailed Product Description
Product Name: Floating Ball Valve Material: SS316
Presure: 1,000/800psi Size: DN65
Usage: Oil And Gas Temperature Of Media: High-Pressure Temperature
Packaging Details: Valves Are Wrapped In Plastic Bubble Sheet Temperature: -20 To 425°C
High Light:

CS41 Steam Valve

,

Stainless Steel Steam Valve

,

Cryogenic Ball Valve

CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve



Detailed Product Description
Product Name: Forged Ball Valve Size: DN15 ~DN100
Pressure: JIS 10K /PN16 Standard: ANS I/ JIS / API / ASME
Temperature: -10~120 C Body: Brass
High Light:

flanged ball valves

,

stainless steel ball float valve





CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve



Forged Ball Valve Applications Standard



- Manufacture standard : API 608/ DIN/ BS/JIS

- Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

- Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

- Test: API 598 API 6D/ DIN/ BS/JIS



Forged Ball Valve Brief introduction:



- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Full Bore, Two Piece Design.
- Quarter Turn, Lever Operated.
- Provided with Forged Brass Hard Chrome Plated Ball.
- PTFE Body Rings and Gland Packing.
- Chrome Plated Finish.



Test Pressure (Hydraulic) Shell : 25 kg/cm²g (350 psig) Seat : 16 kg/cm²g (225 psig)



Materials of Construction


Name of Part Material Specification
Stem Forged Brass IS 6912 Gr. FLB
Nut Carbon Steel IS 1367
Washer Carbon Steel IS 1367
Lever Carbon Steel IS 2062
Body & Gland Nut Forged Brass IS 6912 Gr. FLB
Gland Packing PTFE BS EN 12086-1
Ball Forged Brass IS 6912 Gr. FLB
Body Seat Ring PTFE BS EN 12086-1
Bonnet Forged Brass IS 6912 Gr. FLB



CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve 0

CS41 Steam Valve Floating Type , Stainless Steel Cryogenic Ball Valve 1



Technical Specification

Nominal pressure(Mpa) PN 2.5,4.0,6.4
Strength testing pressure(Mpa) PT 3.8,6.0,9.6
Low pressure seal test(Mpa)   0.6
High pressure seal test(Mpa)   3.0,4.8,7.6
Applicable medium water, oil, gas, nitric acid, acetic acid
Applicable temperature -40~180℃



Forged Ball Valve Feature:



- Anti-blowout Structure of Valve Stem

When medium pass through the valve, the pressure in valve body may possibly

push the stem out, or when the valve is in repair, if there is pressure in the middle

cavity, the stem or medium seems to easily fly out upon disassembling the valve,

which can cause injures to human beings,



To prevent the possibilities, a dummy club is packing and thrust bearing are burnt

or packing is damaged due to other causes, the pressure of medium in valve body

will make the dummy club of valve stem in close contact with the upper seal face of

valve body.



Thus to prevent medium leaking out from the damage packing position.



- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will

becomes more high with rising of pressure of the middle cavity,



Small Resistance ball valve has the smallest resistance of all the valve, in the case

of reduced bore, the resistance is little still.





Floating Ball Valve Main part & material



Part name Material
body WCB,ZG1Cr18Ni9Ti,CF8
ball 1Cr18Ni9Ti 304,316
stem 1Cr18Ni9Ti 304,316
seal ring Polytetrafluoroethlene(PTFE)
packing Polytetrafluoroethlene(PTFE)



22mm WCB Petroleum Floating Ball Valve SIP Sterilization 0



22mm WCB Petroleum Floating Ball Valve SIP Sterilization 1





DN G B L E H A
6 1/4" 8 54 11.5 52 105
10 3/8" 10 54 11.5 52 105
15 1/2" 15 62.5 14 65 130
20 3/4" 20 73.5 15 70 130
25 1" 25 86 15 78 150
32 1-1/4" 32 101 18 82 180
40 1-1/2" 38 110 19 90 200
50 2" 50 123 19 98 200
65 2-1/2" 64 165 23 140 240
80 3" 80 190 25 135 260







Technical Specification

Nominal pressure(Mpa) PN 2.5,4.0,6.4
Strength testing pressure(Mpa) PT 3.8,6.0,9.6
Low pressure seal test(Mpa)   0.6
High pressure seal test(Mpa)   3.0,4.8,7.6
Applicable medium water, oil, gas, nitric acid, acetic acid
Applicable temperature -40~180℃



Feature:

- Anti-blowout Structure of Valve Stem

When medium pass through the valve, the pressure in valve body may possibly

push the stem out, or when the valve is in repair, if there is pressure in the middle

cavity, the stem or medium seems to easily fly out upon disassembling the valve,

which can cause injures to human beings,



To prevent the possibilities, a dummy club is packing and thrust bearing are burnt

or packing is damaged due to other causes, the pressure of medium in valve body

will make the dummy club of valve stem in close contact with the upper seal face of

valve body.



Thus to prevent medium leaking out from the damage packing position.



- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will

becomes more high with rising of pressure of the middle cavity,



Small Resistance ball valve has the smallest resistance of all the valve, in the case

of reduced bore, the resistance is little still.



- Prompt switch

The ball valve circumrotates in 90°,It work quickly to open or close.





Specifications:

Technical Specification

- Nominal diameter: 1/2”-25”

- Applicable Temperature: -29℃~425℃(steel) -40℃~550℃(stainless steel)

- Nominal pressure: 150lbs, 300lbs, 600Lb,900lbs,1500lbs PN16/25/40/64/100/160, JIS 5K /10K/20K

- Applicable Medium: water ,gas,oil,and other causticity medium.



Floating Ball Valve Features:



- Anti-blowout Structure of Valve Stem



When medium pass through the valve, the pressure in valve body may possibly push the stem out, or

when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily

fly out upon disassembling the valve, which can cause injures to human beings, To prevent the

possibilities, a dummy club is packing and thrust bearing are burnt or packing is damaged due to other

causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact

with the upper seal face of valve body. Thus to prevent medium leaking out from the damage packing

position.



- Reliable Seal Structure



The seat is made of PTFE. Because the contact area between seat and the ball will becomes more high

with rising of pressure of the middle cavity, Small Resistance ball valve has the smallest resistance of all

the valve, in the case of reduced bore, the resistance is little still.



-Prompt switch



The ball valve circumrotates in 90°,It work quickly to open or close.



Test Pressure

Test Item Shell Test Seal Test Back Seal Test Air Seal Test
Medium Water Air
Unit MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
Pressure (Class) 150 3.1 450 2.2 315 2.2 315 0.5-0.7 60-100
300 7.8 1125 5.6 815 5.6 815
400 10.3 1500 7.6 1100 7.6 1100
600 15.3 2225 11.2 1630 11.2 1630
900 23.1 3350 16.8 2440 16.8 2440



Main Connection Dimensions



22mm WCB Petroleum Floating Ball Valve SIP Sterilization 2

Type Size(mm) Dimension(mm)
inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-150Lb
Q341 F/H/Y-150Lb
Q641 F/H/Y-150Lb
1/2″ 15 108 89 60.5 35 12 4-Φ15 68 115
3/4″ 20 117 98 70 43 12 4-Φ15 75 130
1″ 25 127 108 79.5 51 12 4-Φ15 85 150
11/4″ 32 140 117 89 64 13 4-Φ15 96 190
11/2″ 40 165 127 98.5 73.2 15 4-Φ15 107 230
2″ 50 178 152 120.7 92 16 4-Φ19 118 240
21/2″ 65 190 177.8 139.7 104.7 18 4-Φ19 145 280
3″ 80 203 190.5 152.4 127 19 4-Φ19 160 310
4″ 100 229 229 190.5 157 24 8-Φ19 185 330
5″ 125 356 254 216 185.7 26 8-Φ22 230 600
6″ 150 394 279 241.3 216 26 8-Φ22 260 800
8″ 200 457 343 298.5 270 29 8-Φ22 310 1000
10″ 250 533 406 362 324 31 12-Φ25 350 1200
