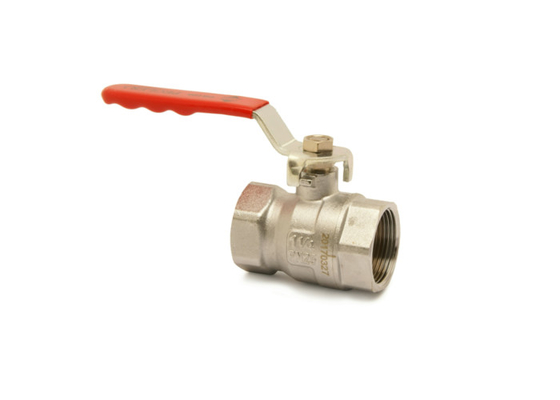

High Pressure Floating Ball Valve 150lbs~2500lbs / PN16~PN160 / JIS 10K~20K

High Pressure Floating Ball Valve 150lbs~2500lbs / PN16~PN160 / JIS 10K~20K

  • High Pressure Floating Ball Valve 150lbs~2500lbs / PN16~PN160 / JIS 10K~20K
  • High Pressure Floating Ball Valve 150lbs~2500lbs / PN16~PN160 / JIS 10K~20K
High Pressure Floating Ball Valve 150lbs~2500lbs / PN16~PN160 / JIS 10K~20K
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: Floating Ball Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15-20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS
Contact Now
Detailed Product Description

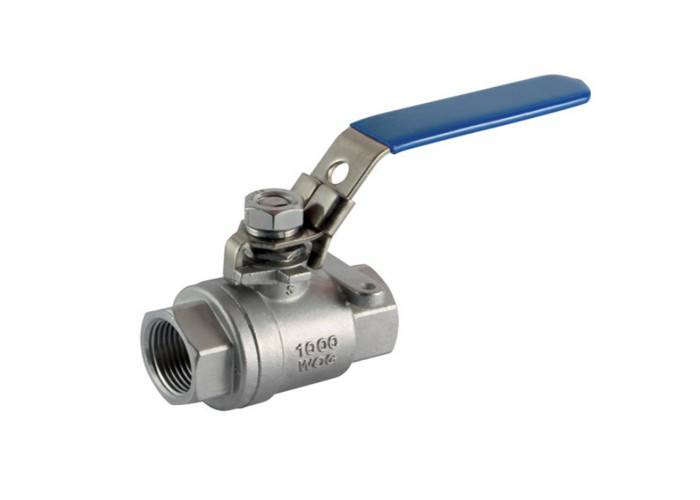

Product Name: Floating Ball Valve Material: SS316
Presure: 1,000/800psi Size: DN65
Usage: Oil And Gas Temperature Of Media: High-Pressure Temperature
Packaging Details: Valves Are Wrapped In Plastic Bubble Sheet Temperature: -20 To 425°C
High Light:

High Pressure Floating Ball Valve

,

2500lbs Floating Ball Valve

,

PN16 Floating Ball Valve

High Pressure Floating Ball Valve 150lbs~2500lbs/PN16~PN160/JIS 10K~20K



Detailed Product Description
Product Name: Floating Ball Valve Application: Water, Oil, Gas Etc.,
Size: DN15 ~DN600 Pressure: High Pressure
Feature: High Strength Temperature: -20~429 C
Stem: Stainless Steel / 2Cr13 Connect: L Or T
High Light:

flanged ball valves

,

stainless steel ball float valve





High Pressure Floating Ball Valve 150lbs~2500lbs/PN16~PN160/JIS 10K~20K



Floating Ball Valve Description:



2 Way Ball Float Valve is designed and manufactured according well to API 608. Floating ball when small caliber,

and fixed ball when large caliber.



It has fire protection structure and antistatic device. Widely used for petroleum, chemistry, water

treatment industries.



Floating Ball Valve Parameters



OEM brand ball valve, full bore
body : Stainless steel CF8M ( SS 316)
ball : Stainless steel CF8M ( SS 316)
shaft: Stainless steel 316
seats: PTFE
operation: with Stainless steel lever
internal fastenings: Stainless steel 316 (A4)
working pressure : 16 bar at max. 40 deg. C
seat leakage: no visible leakage as specified in EN 12266-1
application : lime solution or alum. solution
flanged to PN16 of BS EN1092-1



Floating Ball Valve Technical Specification



- Applicable Temperature: -29℃~425℃(steel) -40℃~550℃(stainless steel)

- Nominal pressure: 150lbs, 300lbs, 600Lb,900lbs,1500lbs PN16/25/40/64/100/160, JIS 5K /10K/20K

- Applicable Medium: water ,gas,oil,and other causticity medium.



Floating Ball Valve Applications Standard



- Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

- Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

- Test: API 598 API 6D/ DIN/ BS/JIS



Floating Ball Valve Features:



- Anti-blowout Structure of Valve Stem



When medium pass through the valve, the pressure in valve body may possibly push the stem out, or

when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily

fly out upon disassembling the valve, which can cause injures to human beings, To prevent the

possibilities, a dummy club is packing and thrust bearing are burnt or packing is damaged due to other

causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact

with the upper seal face of valve body. Thus to prevent medium leaking out from the damage packing

position.





Test Pressure

Test Item Shell Test Seal Test Back Seal Test Air Seal Test
Medium Water Air
Unit MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
Pressure (Class) 150 3.1 450 2.2 315 2.2 315 0.5-0.7 60-100
300 7.8 1125 5.6 815 5.6 815
400 10.3 1500 7.6 1100 7.6 1100
600 15.3 2225 11.2 1630 11.2 1630
900 23.1 3350 16.8 2440 16.8

2440





Main Connection Dimensions



Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard 0

Type Size(mm) Dimension(mm)
inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-150Lb
Q341 F/H/Y-150Lb
Q641 F/H/Y-150Lb
1/2″ 15 108 89 60.5 35 12 4-Φ15 68 115
3/4″ 20 117 98 70 43 12 4-Φ15 75 130
1″ 25 127 108 79.5 51 12 4-Φ15 85 150
11/4″ 32 140 117 89 64 13 4-Φ15 96 190
11/2″ 40 165 127 98.5 73.2 15 4-Φ15 107 230
2″ 50 178 152 120.7 92 16 4-Φ19 118 240
21/2″ 65 190 177.8 139.7 104.7 18 4-Φ19 145 280
3″ 80 203 190.5 152.4 127 19 4-Φ19 160 310
4″ 100 229 229 190.5 157 24 8-Φ19 185 330
5″ 125 356 254 216 185.7 26 8-Φ22 230 600
6″ 150 394 279 241.3 216 26 8-Φ22 260 800
8″ 200 457 343 298.5 270 29 8-Φ22 310 1000
10″ 250 533 406 362 324 31 12-Φ25 350 1200





Type Size(mm) Dimension(mm)
  inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-300Lb
Q341F/H/Y-300Lb
Q641F/H/Y-300LbY
1/2″ 15 140 95 66.5 35 15 4-Φ15 72 115
  3/4″ 20 152 117 82.5 43 16 4-Φ19 75 130
  1″ 25 165 124 89 51 18 4-Φ19 85 150
  11/4″ 32 178 133 98.5 64 19.5 4-Φ19 95 180
  11/2″ 40 190 156 114.3 73.2 21 4-Φ22 110 230
  2″ 50 216 165 127 92 23 8-Φ19 120 240
  21/2″ 65 241 190.5 149.4 104.7 26 8-Φ22 150 280
  3″ 80 283 210 168.5 127 29 8-Φ22 165 310
  4″ 100 305 254 200.2 157 32 8-Φ22 190 330
  5″ 125 381 279 235 185.7 35 8-Φ22 240 600
  6″ 150 403 318 270 216 37 12-Φ22 270 800
  8″ 200 502 381 330 270 42 12-Φ25 315 1000
  10″ 250 568 445 387.5 324 48 16-Φ29 380 1200





Type Size(mm) Dimension(mm)
  inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-600Lb
Q341F/H/Y-600Lb
Q641F/H/Y-600Lb
1/2″ 15 165 95 66.5 35 15 4-Φ15 88 115
  3/4″ 20 190 118 82.5 43 16 4-Φ19 98 130
  1″ 25 216 124 89 51 18 4-Φ19 105 150
  11/2″ 40 241 156 114.3 73.2 23 4-Φ22 135 180
  2″ 50 292 165 127 92 26 8-Φ19 155 240
  3″ 80 356 210 168.2 127 32 8-Φ22 175 280
  4″ 100 432 273 216 157 38 8-Φ25 210 330
  6″ 150 559 356 292 216 48 12-Φ29 340 800
  8″ 200 660 419 349 270 56 12-Φ32 400 1000
  10″ 250 787 508 432 324 64 16-Φ35 440

1200
