|Place of Origin:||China|
|Model Number:||SS316L, 304|
|Minimum Order Quantity:||3 PCS|
|Packaging Details:||Plywood wooden cases|
|Delivery Time:||7work days|
|Payment Terms:||D/P, T/T, Western Union|
|Sizes:||2"||Temperature Range:||-29°C To 425°C|
|Packaging Details:||Plywood Or As The Customers′ Requirement.||HS Code:||8481804090|
DIN1.4408 Globe Valve,
PN10 Stainless Steel Globe Valve,
SS316L Globe Valve

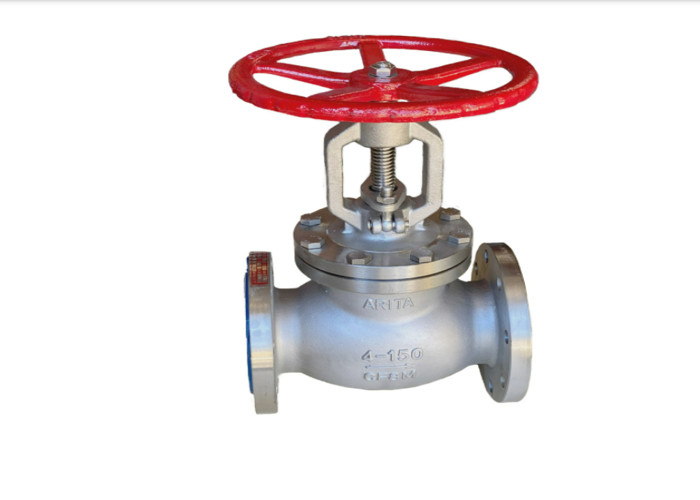

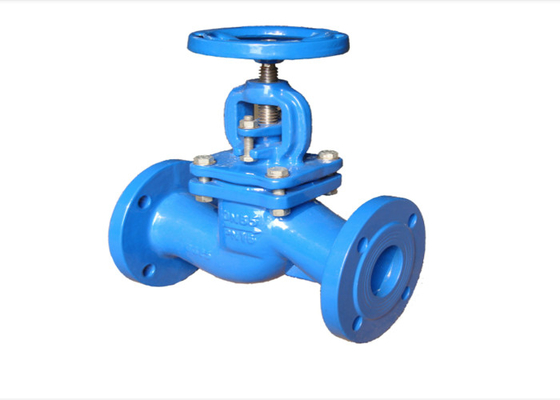

PN10 Stainless Steel CF8/CF8M/CF3M/304/316/316L/DIN1.4408 Globe Valve
Globe valves have a very distinct globe shape. The disk, valve stem, and the hand wheel are the moving parts in the valve body. The body is available in three different designs depending on the application as well as three different types of disks.
Due to the angles in the globe valve body there is a high level of head loss. Head loss is the measure of reduction in the total head of liquid as it moves through the system. Total head loss can be calculated by summing the elevation head, velocity head and pressure head. While head loss is unavoidable in fluid systems, it is increased by obstructions and discontinuities in the flow path such as the S shape of the globe valve design. The body and flow pipes are rounded and smooth to provide system flow without creating turbulence or noise. To avoid creating additional pressure losses at high velocity the pipes should be a constant area. Globe valves are available in three main body types (although custom designs are available as well): angle design, Y-shaped, and Z- shaped.
Angle: Angle valves are designed so that the inlet and outlet are perpendicular. They are used for transferring flow from vertical to horizontal.
Y-body: Y-body design valves, also known as cross-flow globe valves, derive linear action from the incline between the axis of the inlet and outlet ports. This design reduces the high pressure drop inherent in globe valves. The seat and stem are at a 45° angel with the media flow, for a straighter flow path at full opening. The Y-design also keeps the stem, bonnet, and packing in a relatively pressure-resistant envelop. This valve design is well suited for high pressures and other severe services.
|Standard||SS 316||SS 316L||SS 316H||SS 316TI|
|WERKSTOFF NR.||1.4401 / 1.4436||1.4404 / 1.4435||-||1.4571|
|AFNOR||Z7CND17‐11‐02||Z3CND17‐11‐02 / Z3CND18‐14‐03||-||Z6CNDT17‐12|
|JIS||SUS 316||SUS 316L||-||SUS 316Ti|
|GOST||-||03Ch17N14M3 / 03Ch17N14M2||-||08Ch17N13M2T|
|BS||316S31 / 316S33||316S11 / 316S13||-||320S31|
|EN||X5CrNiMo17-12-2 / X3CrNiMo17-13-3||X2CrNiMo17-12-2 / X2CrNiMo18-14-3||-||X6CrNiMoTi17-12-2|
Main Parts and Materials
Stainless Steel 316 / 316L / 316H / 316Ti Valves Specification :
Standards : API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
Size : 1/8 to 1”, Custom Sizes available on request
Working Pressure : Up to 6000 PSIG, valves are also available that can handle higher pressure
End Connection : Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female
Temperature Rating : PTFE 450F,(232C)/Grafoil 700 F(371C)
Pressure rating : 150#,300#,600#,800#,1500#
