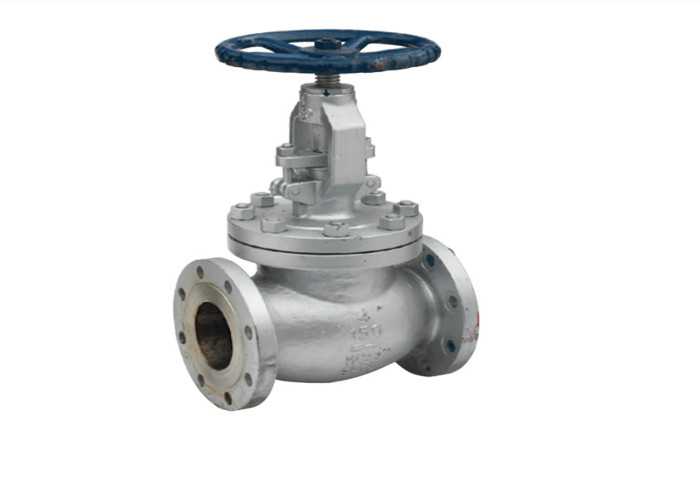

ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve

ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve

  • ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve
  • ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve
ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve
Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO
Model Number: SS316L, 304
Payment & Shipping Terms:
Minimum Order Quantity: 3 PCS
Price: 1.2USD
Packaging Details: Plywood wooden cases
Delivery Time: 7work days
Payment Terms: D/P, T/T, Western Union
Supply Ability: 30000PCS
Contact Now
Detailed Product Description
Sizes: 1/2′′-8′′ Temperature Range: -29°C To 425°C
Pressure: Class 150/300 Standard: DIN, GB
Packaging Details: Plywood Or As The Customers′ Requirement. HS Code: 8481804090
High Light:

316SS Flange End Globe Valve

,

ANSI Flange End Globe Valve

,

Class 150 Flange End Globe Valve

ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve



Components

Globe valves have a very distinct globe shape. The disk, valve stem, and the hand wheel are the moving parts in the valve body. The body is available in three different designs depending on the application as well as three different types of disks.







ANSI Class 150/300 Stainless Steel 304 316 Flange End Globe Valve 0



Body Construction

Due to the angles in the globe valve body there is a high level of head loss. Head loss is the measure of reduction in the total head of liquid as it moves through the system. Total head loss can be calculated by summing the elevation head, velocity head and pressure head. While head loss is unavoidable in fluid systems, it is increased by obstructions and discontinuities in the flow path such as the S shape of the globe valve design. The body and flow pipes are rounded and smooth to provide system flow without creating turbulence or noise. To avoid creating additional pressure losses at high velocity the pipes should be a constant area. Globe valves are available in three main body types (although custom designs are available as well): angle design, Y-shaped, and Z- shaped.



Angle: Angle valves are designed so that the inlet and outlet are perpendicular. They are used for transferring flow from vertical to horizontal.

Y-body: Y-body design valves, also known as cross-flow globe valves, derive linear action from the incline between the axis of the inlet and outlet ports. This design reduces the high pressure drop inherent in globe valves. The seat and stem are at a 45° angel with the media flow, for a straighter flow path at full opening. The Y-design also keeps the stem, bonnet, and packing in a relatively pressure-resistant envelop. This valve design is well suited for high pressures and other severe services.





Standard SS 316 SS 316L SS 316H SS 316TI
UNS S31600 S31603 S31609 S31635
WERKSTOFF NR. 1.4401 / 1.4436 1.4404 / 1.4435 - 1.4571
AFNOR Z7CND17‐11‐02 Z3CND17‐11‐02 / Z3CND18‐14‐03 - Z6CNDT17‐12
JIS SUS 316 SUS 316L - SUS 316Ti
GOST - 03Ch17N14M3 / 03Ch17N14M2 - 08Ch17N13M2T
BS 316S31 / 316S33 316S11 / 316S13 - 320S31
EN X5CrNiMo17-12-2 / X3CrNiMo17-13-3 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 - X6CrNiMoTi17-12-2



Specification

Size 1/2''-8'' (DN15-DN200)
Working Pressure CLASS 150/300
Working Temperature -20ºC-180ºC
Design ASME B16.34
Flange Dimension ASME B 16.5
Face to face ASME B16.10
Inspection &testing API 598



Stainless Steel 316 / 316L / 316H / 316Ti Valves Specification :

Standards : API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34

Size : 1/8 to 1”, Custom Sizes available on request

Working Pressure : Up to 6000 PSIG, valves are also available that can handle higher pressure

End Connection : Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female

Temperature Rating : PTFE 450F,(232C)/Grafoil 700 F(371C)

Pressure rating : 150#,300#,600#,800#,1500#



Part Material

No. Part Name Material No. Part Name Material
1 Body CF8 CF8M WCB 10 Stem 201
2 Disc CF8 CF8M WCB 11 Handwheel WCB
3 Open-loop 201 12 Valve-Stem Nut 201
4 Valve Cover CF8 CF8M WCB 13 Packing Gland 201
5 Bolt Stud 201 14 Bolt 201
6 Gasket PTFE 15 Hexnut 201
7 Hexnut 201 16 Slipknot bolt 201
8 Packing Flexible graphite 17 Loking plate 201
9 Gland CF8 CF8M WCB
