TOBO STEEL GROUP CHINA
 |
| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | SS316L, 304 |
| Minimum Order Quantity: | 3 PCS |
|---|---|
| Price: | 1.2USD |
| Packaging Details: | Plywood wooden cases |
| Delivery Time: | 7work days |
| Payment Terms: | D/P, T/T, Western Union |
| Supply Ability: | 30000PCS |
| Sizes: | 1 1/2′′-36′′ | Temperature Range: | -29°C To 425°C |
|---|---|---|---|
| Pressure: | Class 150/2500 | Standard: | DIN, GB |
| Packaging Details: | Plywood Or As The Customers′ Requirement. | HS Code: | 8481804090 |
| High Light: | 600lb Flanged Globe Valve,1 1/2′′ Flanged Globe Valve,Dn40 Flanged Globe Valve |
||

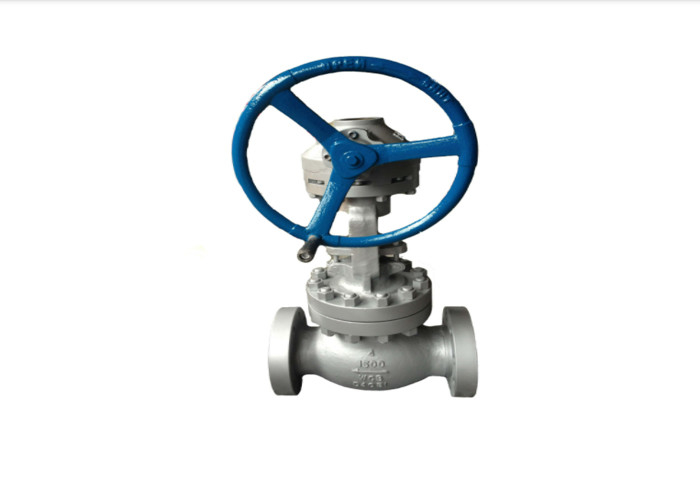

1 1/2′′-36′′(Dn40-Dn900) Api Cast Steel 150lb~600lb Flanged Globe Valve (Wcb/304/316)

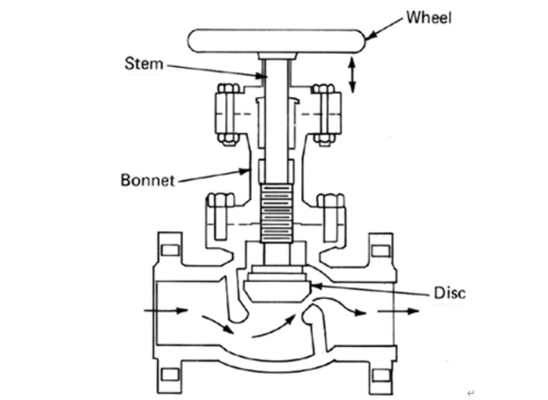

Globe Valve Application
Globe valves are primarily used as control valves where throttling or both throttling and shut-off are required. Globe Valves can also be used for on-off service; however, because of design, a pressure drop becomes inherent. This is generally confined to on-off applications where the valve is normally closed and pressure drop is not important when the valve is open. Globe valves are uni-directional valves and normal applications will find the globe valve with the flow and pressure under the disc. GLT cast steel globe valves are commonly made in outside screw and yoke designs with full ports and heavy-duty type discs.
| Product Name | Stainless Steel Flange Globe Valve |
| 1. Material | A351 CF8M/CF8/CF3 |
| 2. Size | 1/2''~12'' ( DN15~DN300) |
| 3. Certificate | CE&API |
| 4. Port | Full Port |
| 5. Working Pressure | 1.0~10Mpa |
| 6. Connection Ends | flange |
| 7. Working Temp. | -29ºC~230ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | API598 |
| Shipment | |
| Delivery Time | 15~45 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Advantage | OEM/ODM is applicable;Our own casting room |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
And the manufacturing and maintenance are convenient,and the pressure application range is wide.
| Type | Flange globe valve |
| Application | Manual |
| Temperature of Media | Minus 29 degrees to 150 degrees |
| Power | Manual |
| Media | Water, Oil, Air, And Some Corrosive liquid |
| Port Size | DN32 |
| Structure | Flange globe valve |
| Size | 1-1/4inch |
