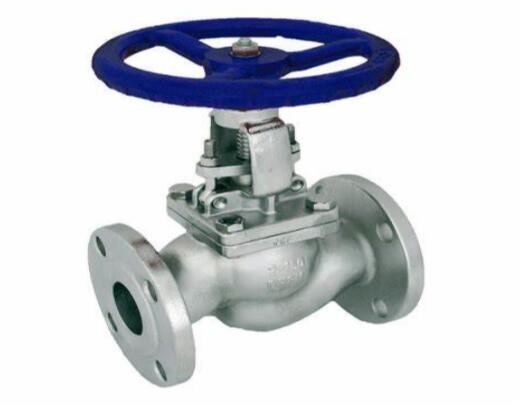

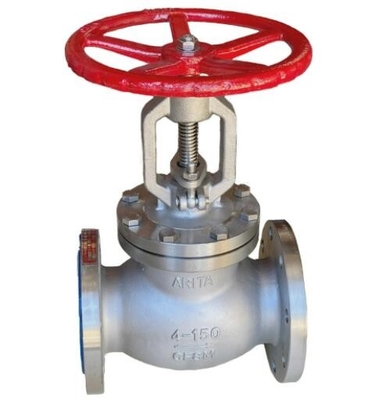

Copper Alloy Water Globe Valve 1/2" 250 LBS WP 300 LBS TEST FNPT

















GLOBE VALVE, FLANGED TO A.S.A B16.5 SUITABLE FOR SOUR GAS SERVICE



selection of possible applications:

(industry) (power station)

(flue gas puerification plant) (gas supply)

(vacuum facilities) (ammonia)

(hot water) (cllling&freezing systme)

(heating technology) (steam system)



The globe valve is designed reference to advanced internal and international standard.Adopting different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.







Features

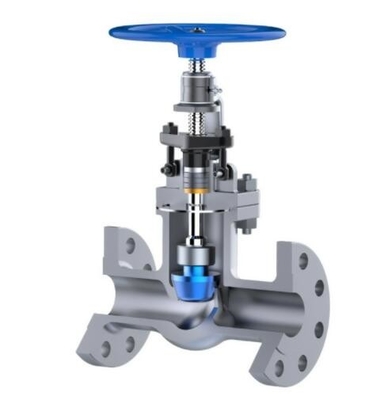

Outside Screw and Yoke (OS & Y), Rising Stem

Bolted Bonnet

Conic Disc

Extended Bonnet for Cryogenic Services

Impact hand wheel optional

Gear Optional

Specifications

Design: ASME B16.34/BS 1873

Face to Face: ASME B16.10

End to End: ASME B16.10

End Flange: ASME B16.5

BW End: ASME B16.25

Test: API 598

Special: NACE MR-01-75

Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



Products performance specification



Parts	Materials
Body	ASTM A216 GR.WCB
Seat Ring	ASTM A105 + Stellite Faced
Disc	ASTM A105 + 13Cr Faced
Disc Thrust Plate	ASTM A276 Type 420
Disc Nut	ASTM A276 Type 410
Stem	ASTM A182 GR.F6
Bonnet Bolt Nuts	ASTM A194 GR.2H
Bonnet Bolts	ASTM A193 GR.B7
Gasket	Soft Iron + Graphite
Backseat Bushing	ASTM A276 Type 410
Stem Packing	Braided Graphite & Die formed Graphite Ring
Bonnet	ASTM A216 GR.WCB
Eyebolt Pins	Carbon Steel
Gland	ASTM A276 Type 410
Gland Flange	ASTM A216 GR.WCB
Gland Eye Bolts	ASTM A307 GR.B
Eyebolt Nuts	ASTM A194 GR.2H
Yoke Bush	ASTM A439 GR.D-2
Screw	Carbon Steel
Hand Wheel	Ductile Iron
Hand Wheel Nut	ASTM A194 GR.2H
Washer	Carbon Steel
Yoke	ASTM A216 GR.WCB
Yoke Pan Bolt Nuts	ASTM A194 GR.2H
Yoke Pan Bolt	ASTM A193 GR.B7
Bearing	Steel
Lantern Ring On Request	ASTM A276 Type 410



Main Dimensions



ASME Pressure Class 150 Lb-Dimensions and Weights

NPS	in	2	2.5	3	4	5	6	8	10	12	14	16
d	mm	51	64	76	102	127	152	203	254	305	337	387
L-L1	in	8	8.5	9.5	11.5	14	16	19.5	24.5	27.5	31	36
(RF-BW)	mm	203	216	241	292	356	406	495	622	698	787	914
L2	in	8.5	9	10	12	14.5	16.5	20	25	28	31.5	36.5
(RTJ)	mm	216	229	254	305	368	419	508	635	711	800	927
H	in	13.43	14.45	14.76	19.02	21.14	20.35	23.23	29.69	37.05	42.72	38.03
(open)	mm	341	367	375	483	537	517	590	754	941	1085	966
W	in	7.87	9.84	9.84	11.81	11.81	13.78	15.75	17.72	25.2	25.2	18.11
	mm	200	250	250	300	300	350	400	450	640	640	460
WT	BF	22	29	42	64	77	105	154	288	507	617	810
(Kg)	BW	19	25	34	49	65	82	131	249	430	580	763



ASME Pressure Class 300 Lb-Dimensions and Weights

NPS	in	2	2.5	3	4	5	6	8	10	12
d	mm	51	64	76	102	127	152	203	254	305
L-L1	in	10.5	11.5	12.5	14	15.75	17.5	22	24.5	28
(RF-BW)	mm	267	292	318	356	400	444	559	622	711
L2	in	11.12	12.12	13.12	14.62	16.37	18.12	22.62	25.12	28.62
(RTJ)	mm	283	308	333	371	416	460	575	638	727
H	in	13.74	14.8	16.93	19.13	22.05	24.33	36.89	37.36	39.17
(open)	mm	349	376	430	486	560	618	937	949	995
W	in	7.87	9.84	9.84	13.78	15.75	17.72	2.05	25.2	18.11
	mm	200	250	250	350	400	450	560	640	460
WT	BF	31	43	57	86	130	168	280	385	724
(Kg)	BW	26	38	44	68	110	138	228	329	618



ASME Pressure Class 300 Lb-Dimensions and Weights



NPS	in	2	2.5	3	4	6	8	10	12
d	mm	51	64	76	102	152	200	248	298
L-L1	in	11.5	13	14	17	22	26	31	33
(RF-BW)	mm	292	330	356	432	559	660	787	838
L2	in	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12
(RTJ)	mm	295	333	359	435	562	664	791	841
H	in	16.73	19.76	20.51	24.41	34.88	36.69	40.94	50.39
(open)	mm	425	502	521	620	886	932	1040	1280
W	in	9.84	11.81	13.78	17.72	22.05	18.11	24.02	29.92
	mm	250	300	350	450	560	460	610	760
WT	BF	39	58	73	120	327	482	700	900
(Kg)	BW	33	48	61	95	261	385	588	795















Brief introduction:

The globe valve is designed reference to advanced internal and international standard. The body adopt

sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



Apply from CLASS150 to CLASS1500, and -29℃～425℃(steel), -40℃～550℃(stainless steel).



Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.
