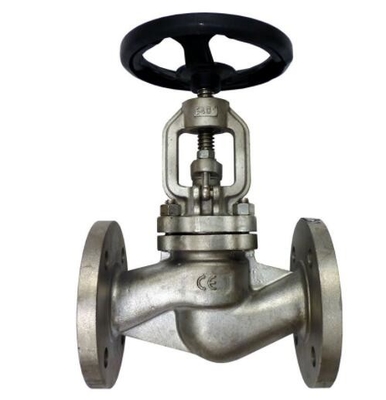

| Production Name: | Globe Valve | Material: | WCB |
|---|---|---|---|
| Ends: | Flanged Ends | Application: | Gas, Oil, Water And Other Corrosie Liquid |
| Size: | DN80 | Pressure: | PN16 |
| Tempreture: | Medium Pressure | Stem Thread Position: | Outside Screw Stem Globe Valve |
| High Light: | Stainless Steel Globe Needle Valve,100 Bar Globe Needle Valve,Medium Pressure Globe Needle Valve |
||

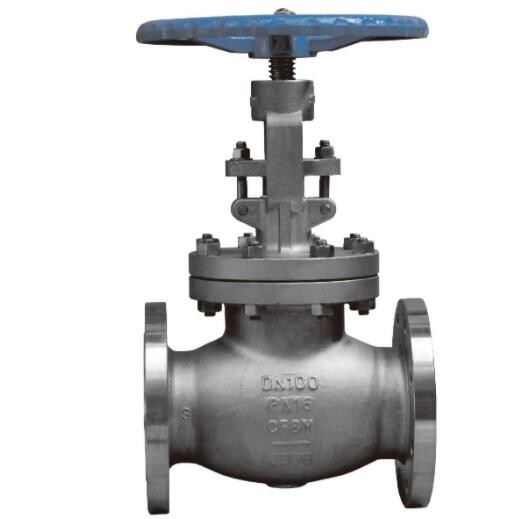

Stainless Steel Globe Style Needle Valve By Thread End Working Pressure 100 Bar Min
| Product Name: | Needle Valve | Application: | Oil, Gas, Water, Steam Etc., |
|---|---|---|---|
| Size: | DN15 ~DN50 | Pressure: | PN16~160/ 150lbs~2500lbs/JIS 10K/20K |
| Standard: | ASME B16.34-2004 | Temperature: | -29~538 C |
| Body: | Stainless Steel | Stem: | Stainless Steel/ 2Cr13 |
| Connect: | Thread End | ||
| High Light: |
cast steel globe valve,2 inch globe valve |
||
Stainless Steel Globe Style Needle Valve By Thread End Working Pressure 100 Bar Min
Item No. : J13W-1
Product Name : Needle Valve
Features:
1. Manufacture Standard: ASME B16.34-2004
2. Mode of Connection: female thread connector(NPT,G,Rc,Rp…)
3. Characteristic: awl seals
4. Test & Inspection: API 598-1996
5. Nominal Pressure:≤10000Psi
6. Applicable temperature:-29℃～+538℃
7. Applicable medium:water,steam,oil and corrosive media…
8. Nominal Bore Size:DN6,DN10,DN15,DN20,DN25…
| NO. | part | material |
| 10 | handle | alumium |
| 9 | stem | SS316 |
| 8 | up joint | SS316 |
| 7 | cap | SS316 |
| 6 | bonnet | SS316 |
| 5 | packing grand | SS316 |
| 4 | packing | graphite |
| 3 | packing gasket | SS316 |
| 2 | gasket | SS316 |
| 1 | body | SS316 |
If you need more details, please kindly contact with us, ignore the follow information.
Forged steel globe valves are available in three bonnet designs.
The first design is the Bolted, with male-female joint, spiral wound gasket, made in F304L/graphite.Ring joint gasket are also available on request.
The second design is the welded bonnet, with a threaded and seal welded joint.
On request a full penetration strength welded joint is available.
The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Mail part & material
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS+ graphite | SS+PTFE | ||
| 5 | Bonnet Bolt | A105 | A276 304 | A276 F304()L | A276 F316(L) |
| 6 | Bonnet Bot | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Pin | A276 420 | A276 304 | ||
| 8 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 9 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Gland Flange | A216 WCB | A351 CF8 | ||
| 11 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Yoke Nut | A276 410 | |||
| 13 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 14 | Nameplate | SS | |||
| 15 | Handwheel | A197 | |||
| 16 | Stem Packing | Flexible | PTFE | ||
| Suitable Medium | Water, oil, gas etc., | Water, oil, gas etc., | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃～425℃ | -29℃～550℃ | -29℃～180℃ | ||
Technical Specification
※ Globe valves conform to API 602, and ASME B 16.34
※ each are tested according to API 598, and marking is per MSS SP-25
※ Full Port or Conventional Port
※ Outside Screw and Yoke(OS & Y)
※ Two piece self-aligning packing gland
※ Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and
pressure seal bonnet
※ Integral backseat
※ Socket weld ends to ASME B16.11
※ Screwed Ends (NPT) to ANSI/ASME B1.20.1
Main external and connection dimension
CLASS 800LB
| NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | |
| Full | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | ||
| L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | |
| H(OPEN) | 166 | 166 | 171 | 207 | 240 | 258 | 330 | 355 | |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | |
| Weight | Bolted | 1.9 | 1.9 | 2.1 | 3.5 | 6.0 | 7.5 | 11.4 | 14.6 |
| Welded | 1.7 | 1.7 | 1.9 | 3.3 | 5.2 | 6.8 | 10.6 | 13.8 | |
CLASS 900LB~ 1500LB
| NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | |
| Full | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | ||
| L | 92 | 111 | 111 | 120 | 152 | 172 | 200 | 220 | |
| H(OPEN) | 171 | 207 | 207 | 240 | 258 | 330 | 355 | 370 | |
| W | 100 | 125 | 125 | 160 | 160 | 180 | 200 | 240 | |
| Wieght | Bolted | 2.2 | 3.7 | 3.6 | 6.8 | 7.6 | 11.6 | 15.0 | 21.9 |
| Welded | 2.0 | 3.4 | 3.3 | 6.0 | 5.6 | 10.3 | 14.2 | 18.0 |
|
