TOBO STEEL GROUP CHINA
 |

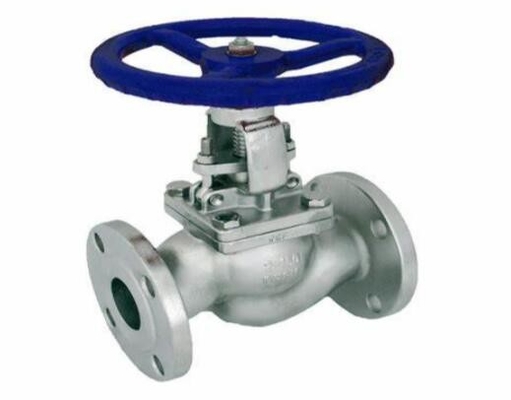

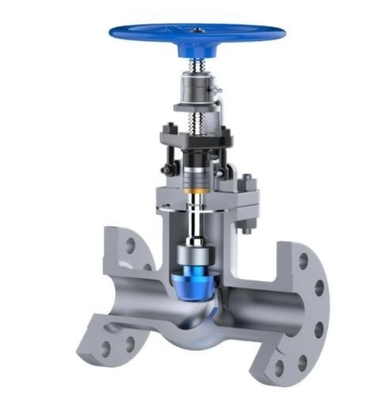

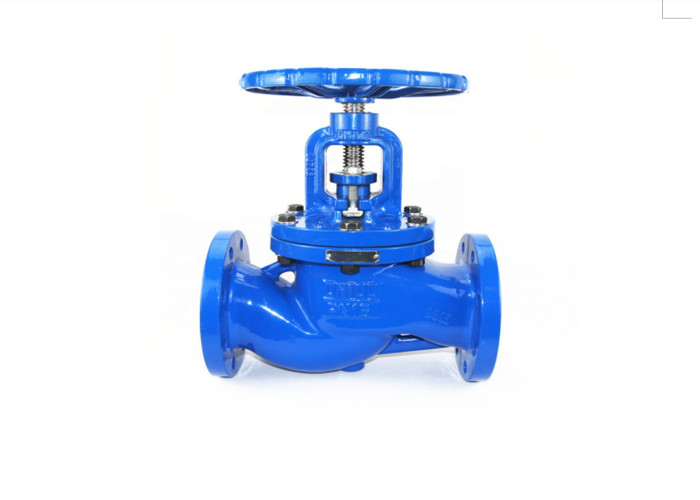

| Place of Origin: | China |
| Brand Name: | TOBO |
| Certification: | API ISO CE |
| Model Number: | WCB |
| Minimum Order Quantity: | 5Pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton, Ply-Wooden case or according to the clients request |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000Pcs per Month |
| Production Name: | Globe Valve | Material: | WCB |
|---|---|---|---|
| Ends: | Flanged Ends | Application: | Gas, Oil, Water And Other Corrosie Liquid |
| Size: | DN80 | Pressure: | PN16 |
| Tempreture: | Medium Pressure | Stem Thread Position: | Outside Screw Stem Globe Valve |
| High Light: | DN80 Angle Shut Off Valve,PN16 Angle Shut Off Valve,Flange End Angle Shut Off Valve |
||
Pneumatic Angle Shut off Valve DN80 PN16 Bar Flange End DN15 ~ DN100 Size
| Product Name: | Globe Valve | Application: | Oil, Gas, Water, Steam Etc., |
|---|---|---|---|
| Size: | DN15 ~DN100 | Pressure: | PN16~160/ 150lbs~2500lbs/JIS 10K/20K |
| Standard: | API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K | Temperature: | -29~225 C |
| Body: | Cast Steel/WCB/WC6/stainless Steel | Stem: | Stainless Steel/ 2Cr13 |
| Actuator: | Pneumatic | ||
| High Light: |
cast steel globe valve,2 inch globe valve |
||
Angle Shut-off Valve DN80 PN16 Bar Flange End, With Pneumatic 2W, 150c, STS316L, CSD, AIR(SV), 1.5s, L/S
The new flange angle seat valve body adopts stainless steel material, suitable for corrosive conditions.
In the non working state, the angle seat valve due to the role of the spring, the valve is normally open or normally closed.
When the actuator piston is compressed, the valve is opened or closed, and the double action form is controlled by the compressed gas to control the valve switch.
From the external medium advanced stainless steel flange angle seat valve, overflow and the slide from the regulator gland, angle seat valve body structure can achieve a larger flow, especially compared with ordinary globe valves.
Flange angle seat valve pneumatic actuator is divided into single and double acting (single acting pneumatic head is usually a hole); its working principle; according to the spring return to the role of open and closed, divided into normally open and normally closed.
Double action (pneumatic head is usually two holes); working principle: to control the gas to the gas switch.
| New flange angle seat valve main performance parameters: |
| Pressure range: 0-16bar |
| Medium temperature: -10 ~ +180 |
| Ambient temperature: -10 ~ +60 |
| Specifications: DN15-DN100,1/2 '-4' |
| Control pressure: 3-8bar |
| Body material: stainless steel, CF8/304, CF8M/316 |
| Sealing material: PTFE PTFE |
| Actuator housing: polyamide PA |
| Medium: neutral gas, air, water, steam |
| Flange standard: GB, ANSI, DIN, JIS |
| Features: double action, single action, waterproof hammer |
| Control function: normally open |
| DN | L | T | f | D | D1 | D2 | H | A | B | n-d | Pueumatic |
| 15 | 120 | 14 | 2 | 95 | 65 | 40 | 137 | 180 | 64 | 4-Φ14 | 50 |
| 20 | 130 | 14 | 2 | 105 | 75 | 50 | 145 | 185 | 64 | 4-Φ14 | 50 |
| 25 | 140 | 14 | 2 | 115 | 85 | 60 | 173 | 210 | 80 | 4-Φ14 | 63 |
| 32 | 150 | 16 | 2 | 135 | 100 | 70 | 210 | 240 | 80 | 4-Φ18 | 63 |
| 40 | 180 | 16 | 2 | 145 | 110 | 8 | 260 | 245 | 80 | 4-Φ18 | 63 |
| 50 | 195 | 16 | 2 | 160 | 125 | 92 | 300 | 295 | 100 | 4-Φ18 | 80 |
| 65 | 230 | 18 | 2 | 185 | 145 | 115 | 315 | 320 | 126 | 4-Φ18 | 100 |
| 80 | 250 | 18 | 2 | 195 | 160 | 130 | 330 | 330 | 126 | 8-Φ18 | 100 |
| 100 | 280 | 18 | 2 | 215 | 180 | 150 | 350 | 360 | 156 | 8-Φ18 | 125 |
Flange end angle shut off valve flow characteristics:
| NPT | Inner hole | KV | Max pressure | mini control | Pneumatic | flow |
| G3/8" | 10 | 3.7 | 0~16bar | 4 | 50 | Valve seat upper |
| G1/2" | 15 | 4.2 | 0~16bar | 2.7 | 50 | |
| G3/4" | 20 | 8 | 0~16bar | 2.7 | 50 | |
| G1 | 25 | 19 | 0~16bar | 2 | 63 | |
| G1 1/4" | 32 | 27.5 | 0~16bar | 2 | 63 | |
| G1 1/2" | 40 | 42 | 0~16bar | 2 | 63 | |
| G2 | 50 | 52 | 0~16bar | 2 | 80 | |
| G2 1/2" | 65 | 77 | 0~14bar | 1.6 |
100
|
| Pneumatic angle seat valve according to the performance parameters of the cylinder: |
| PPS executive body shell is suitable for ambient temperature: +5 |
| Double acting actuator without reset spring |
| Quick connection |
| Electronic position feedback |
| Independent adjustable stroke limit, suitable for high and low flow |
| Manual emergency switch |
| Pilot valve suitable for Namur adapter |
