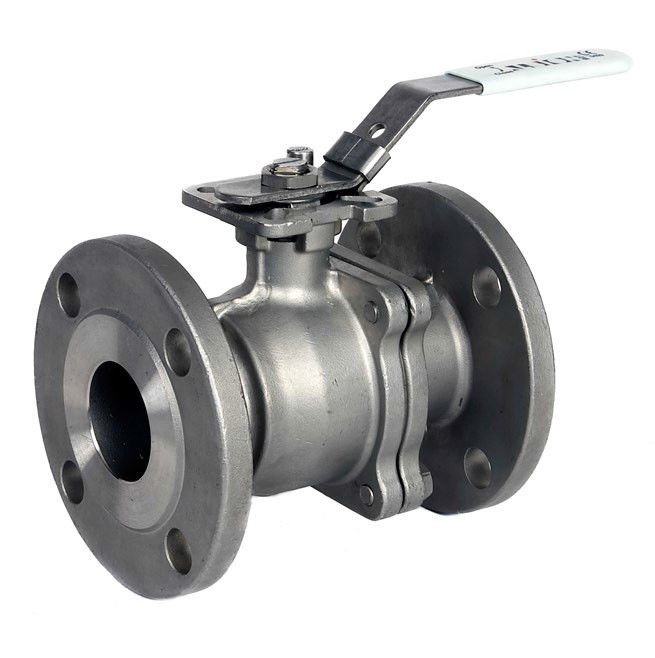

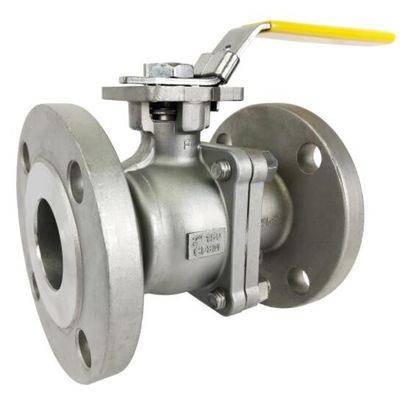

Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve

Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve

  • Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve
  • Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve
Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: 3 PIECES Ball Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15-20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS
Contact Now
Detailed Product Description
Product Name: 3 PIECE BALL VALVE Material: SS316
Presure: PN16 Size: 1''
Type: FULL BORE Temperature Of Media: High-Pressure Temperature
Pressure.rating: 1000PSI.WOG Standard: EN
High Light:

Two Pieces Stainless Steel Ball Valve

,

CF3M Stainless Steel Ball Valve

,

PN40 Stainless Steel Ball Valve



Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve



Quick Details



Full.bore

Threaded.ends:ANSIB2.1.BS.

21,DIN259/2999.JIS.130202/130203

Internal.entry.blow-out.proof.stem

Material:.CF8M.CF8.CF3M.WCB

Pressure.rating:.1000PSI.WOG

Pressure.test:.API.598

Lever.handle.with.locking.device



Size of 3 Piece Internal Threaded Ball Valve:

Size

Φd

L

H

W

ΦB

ΦE

ΦS

L2

Torque

1/4

11

50.4

48

103

10.8

18

14.2

10

4~5

3/8

12

50.4

48

103

12.7

19.5

17.6

10

4~5

1/2

15

61.4

50

103

16.1

23

21.7

10

6~8

3/4

20

70

70

60

127

21

27.1

14

8~10

1

25

79.6

64

127

26.7

34

33.8

14

12~5

1-1/4

32

93

93

79

154

35.1

41

15

18~20

1-1/2

38

102

102

85

154

40.5

49

15

25~30

1/2

50

124

124

87

192

54.8

61

19

35~45

2-1/2

65

156

156

117

244

65

73.8

21

55~65

3

76

179.2

125

244

80.5

94

89.8

24

80~90

4

100

218.4

173

330

100

116

115.5

35

140~160



PART NAME

MATERIAL

BODY/BONNET

WCB,LCC,LCB,CF8,CF8M,CF3,CF3M

BALL

WCGB+HCr,A105+HCr,2Cr13,304,316,304L,316L

STEM

2Cr13,304,316,304L,316L

SEAT

PTFE,PPL,NYLON 101



SPECIFICATIONS FOR STEEL GLOBE VALVES



Pressure rating and size:

PN10,PN25,PN40,PN64,150L-600LB
  DN40 to DN600
  1-1/2"~24"
Material: Body : A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
  Disc : A105+13Cr, SS304, SS316
  Stem : A182+F6a,A182-F6a
  Bonnet :A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
Operated type Handwheel
Structure: stopcock for water
Flange connection: ASME B16.5,EN1092
Butt-weld ends: ASME B16.25
Medium: W.O.G
Temperature: -20 to 425°C



A Ball valve is a quarter-turn rotary motion valve that uses a ball-shaped disk to stop or start the flow.

It resembles a plug valve in many ways. When a port in the ball is in line, it allows flow whereas when you

rotate the valve 90 degrees, solid part of the ball stop the flow.

Most ball valves are of the quick-acting type, which requires a 90° turn of the valve handle to operate the valve.

But in case large size valve which required considerable force to open or close the valve, the gear-operated

actuator is used. With this arrangement, a small handwheel is enough to operate a fairly large valve.

In this article, I have covered following types of Ball Valves that used in piping.

  • Floating

  • Trunnion Mounted

  • 3 Way

  • Top entry

  • Side entry or split body

  • Three-piece body

Applications of the Valve

  • It can be used in different types of fluid services as an on-off stop valve that provides bubble-tight shutoff.

  • It can be used in air, gaseous, and vapor services as well as hydrocarbon services.

  • Metal seated valves can be used in high-pressure & temperature applications.

  • it is widely used with instrument tubing to connect instruments.

Advantages

  • It is quick to open and close type that provides bubble-tight reliable sealing in high-pressure temperature applications.

  • It is smaller and lighter than a gate valve of the same size and rating.

  • Several designs of ball valves offer the flexibility of selection so that you can choose the valve that suits your requirements.

  • Easy to operate and Cost-effective maintenance.



Features:


1.Forged ball
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6.Double block&bleed(DBB)
7.Emergency sealing
8.Extension stem at your choice
9.Automatic body cavity relief
10.Various driving types: gear, lever, electric, hydraulic, pneumatic



Standards Compliance


Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D



Packaging Details



Valves are wrapped in plastic bubble sheet & in plywood boxes

Port:China

Lead Time :

Quantity(Sets) 1 - 100 >100
Est. Time(days) 25 To be negotiated



The three-piece ball valve with the internal thread and the gate valve are the same type of valve.

The difference is that the closing part is a ball, and the ball rotates around the center line of the valve body to

achieve a valve that is opened and closed.

The three-piece ball valve only needs to be rotated tightly with a 90-degree rotation and a small rotational torque.

The completely equal valve body cavity provides a small, straight flow path for the medium. It is generally considered

that the ball valve is most suitable for opening and closing directly, and the ball valve has been designed to have a throttling

and control flow. The main characteristics of the ball valve are its compact structure, easy operation and maintenance,

suitable for general working media such as water, solvent, acid and natural gas, and also suitable for working media with

poor working conditions such as oxygen, hydrogen peroxide, methane and ethylene. The ball valve body can be integral or modular.

Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve 0

Specification of 3 Piece Internal Threaded Ball Valve:

No.

Drawing.No.

Name

Material

1

V3S000l

Body

CF8M

2

V3S0002

Cap

CF8M

3

V3S0003

Ball

CF8M

4

V3S0004

Stem

316

5

V3S0005

Seat

PTFE+3%.GF 4

6

V3S0006

Gasket

PTFE

7

V3S0007

Thrust.washer

PTFE

8

V3S0008

Stem.packing

PTFE

9

V3S0009

Gland

304

10

V3S0010

Spring.washer

304

11

V3S0011

Nut

304

12

V3S0012

Handle

304

13

V3S0013

Handle.Sleeve

Rubber

14

V3S0014

Bolt

304

15

V3S0015

Spring.washer

304

16

V3S0016

Nut

304

17

V3S0017

Lock.washer

304



Handle Lock PN40 Two Pieces CF8M CF3M 3 4 Inch Stainless Steel Ball Valve 1
