Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball

Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball

  • Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball
Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball
Product Details:
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO
Model Number: Fully Welded Ball Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Valves are wrapped in plastic bubble sheet & in plywood boxes
Delivery Time: 15-20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS
Contact Now
Detailed Product Description
Product Name: Fully Welded Ball Valve Material: SS316
Presure: PN16 Size: 2''
Type: FULL BORE Temperature Of Media: Low-Pressure Temperature
Pressure.rating: 1000PSI.WOG Standard: EN
High Light:

WC9 Fully Welded Ball Valve

,

PN16 Fully Welded Ball Valve

,

SS316 Fully Welded Ball Valve

Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB and RB, Hollow ball

Specification:



Porduct Description: DN15-DN150 floating Weld ball valve

Prouct structure: Floating ball structure, FB and RB, Hollow ball.

Connection mode: Welding, Flange.

Working Temperature: -40 - 200 degree

Working Medium: water, Oil, Gas

Main Body Material :

ASTEM A216 WCB,LCB ,A217 WC1,WC9,C5,ASTM CF8,CF8M,CF8C,CF3,CF3M./ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy

Main Ball Material:

ASTM A105, A182 304, A182 316, A182 304L, A182 316L,A182 F6A,A182,F51,A182 F53,F22 Alloy

Main Seats Material:

PTFE/ RTFE(≤120℃) , NYLON (≤80℃), PEEK/PPL (≤250℃)





Size of 3 Piece Internal Threaded Ball Valve:

Size

Φd

L

H

W

ΦB

ΦE

ΦS

L2

Torque

1/4

11

50.4

48

103

10.8

18

14.2

10

4~5

3/8

12

50.4

48

103

12.7

19.5

17.6

10

4~5

1/2

15

61.4

50

103

16.1

23

21.7

10

6~8

3/4

20

70

70

60

127

21

27.1

14

8~10

1

25

79.6

64

127

26.7

34

33.8

14

12~5

1-1/4

32

93

93

79

154

35.1

41

15

18~20

1-1/2

38

102

102

85

154

40.5

49

15

25~30

1/2

50

124

124

87

192

54.8

61

19

35~45

2-1/2

65

156

156

117

244

65

73.8

21

55~65

3

76

179.2

125

244

80.5

94

89.8

24

80~90

4

100

218.4

173

330

100

116

115.5

35

140~160



PART NAME

MATERIAL

BODY/BONNET

WCB,LCC,LCB,CF8,CF8M,CF3,CF3M

BALL

WCGB+HCr,A105+HCr,2Cr13,304,316,304L,316L

STEM

2Cr13,304,316,304L,316L

SEAT

PTFE,PPL,NYLON 101



SPECIFICATIONS FOR STEEL GLOBE VALVES



Pressure rating and size:

PN10,PN25,PN40,PN64,150L-600LB
  DN40 to DN600
  1-1/2"~24"
Material: Body : A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
  Disc : A105+13Cr, SS304, SS316
  Stem : A182+F6a,A182-F6a
  Bonnet :A216-WCB,A325-LCB,A217-WC6,CF8,CF8M
Operated type Handwheel
Structure: stopcock for water
Flange connection: ASME B16.5,EN1092
Butt-weld ends: ASME B16.25
Medium: W.O.G
Temperature: -20 to 425°C



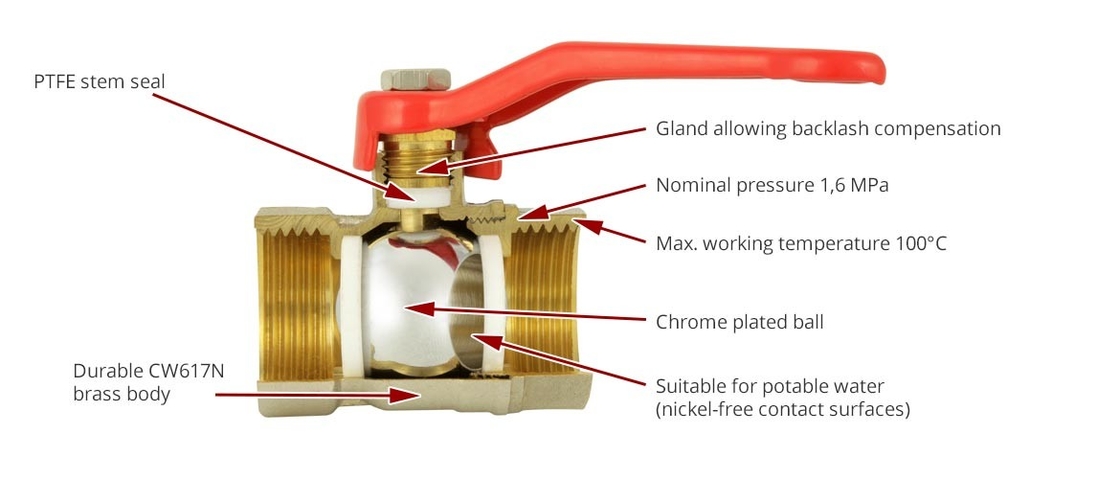

A Ball valve is a quarter-turn rotary motion valve that uses a ball-shaped disk to stop or start the flow.

It resembles a plug valve in many ways. When a port in the ball is in line, it allows flow whereas when you

rotate the valve 90 degrees, solid part of the ball stop the flow.

Most ball valves are of the quick-acting type, which requires a 90° turn of the valve handle to operate the valve.

But in case large size valve which required considerable force to open or close the valve, the gear-operated

actuator is used. With this arrangement, a small handwheel is enough to operate a fairly large valve.

In this article, I have covered following types of Ball Valves that used in piping.

  • Floating

  • Trunnion Mounted

  • 3 Way

  • Top entry

  • Side entry or split body

  • Three-piece body

PRODUCT
Stainless steel pipe fitting. threaded fittings, including elbow, tee, hex nipple, union, hose nipple, reducing bushing, street elbow, plug, cap, SS ball valve such as 1pc ball valve, 2pc ball valve, 3pc ball valve, socket weld ball valve, butt weld ball valve, flange valve, gate valve, globe valve, mini valve, camlock coupling, quick coupling, type A, type B, type C, type D, type E, type F, type DC, type DP, cam and groove coupling, and so on. Natural surface, silvery finished. BSPP, BSPT, NPT, DIN thread, male and female thread. All materials, Stainless steel 201, Stainless steel 304, Stainless steel 316/316l, butt weld and socket weld end. Pressure 150lb and 3000psi.

Applications of the Valve

  • It can be used in different types of fluid services as an on-off stop valve that provides bubble-tight shutoff.

  • It can be used in air, gaseous, and vapor services as well as hydrocarbon services.

  • Metal seated valves can be used in high-pressure & temperature applications.

  • it is widely used with instrument tubing to connect instruments.

  • It is applied in food , bewerage, wine, pharmaceutical and chemical industries.

Advantages

  • It is quick to open and close type that provides bubble-tight reliable sealing in high-pressure temperature applications.

  • It is smaller and lighter than a gate valve of the same size and rating.

  • Several designs of ball valves offer the flexibility of selection so that you can choose the valve that suits your requirements.

  • Easy to operate and Cost-effective maintenance.

  • The valve body can be replaced in any connections and the length will not change.



Features:


1.Forged ball
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6.Double block&bleed(DBB)
7.Emergency sealing
8.Extension stem at your choice
9.Automatic body cavity relief
10.Various driving types: gear, lever, electric, hydraulic, pneumatic



Standards Compliance


Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D



Packaging Details



Valves are wrapped in plastic bubble sheet & in plywood boxes

Port:China

Lead Time :

Quantity(Sets) 1 - 100 >100
Est. Time(days) 25 To be negotiated





Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball 0

Specification of 3 Piece Internal Threaded Ball Valve:

No.

Drawing.No.

Name

Material

1

V3S000l

Body

CF8M

2

V3S0002

Cap

CF8M

3

V3S0003

Ball

CF8M

4

V3S0004

Stem

316

5

V3S0005

Seat

PTFE+3%.GF 4

6

V3S0006

Gasket

PTFE

7

V3S0007

Thrust.washer

PTFE

8

V3S0008

Stem.packing

PTFE

9

V3S0009

Gland

304

10

V3S0010

Spring.washer

304

11

V3S0011

Nut

304

12

V3S0012

Handle

304

13

V3S0013

Handle.Sleeve

Rubber

14

V3S0014

Bolt

304

15

V3S0015

Spring.washer

304

16

V3S0016

Nut

304

17

V3S0017

Lock.washer

304



Stainless Steel ASTM A312 TP316L 2" PN16 Fully Welded Ball Valve FB And RB Hollow Ball 1
