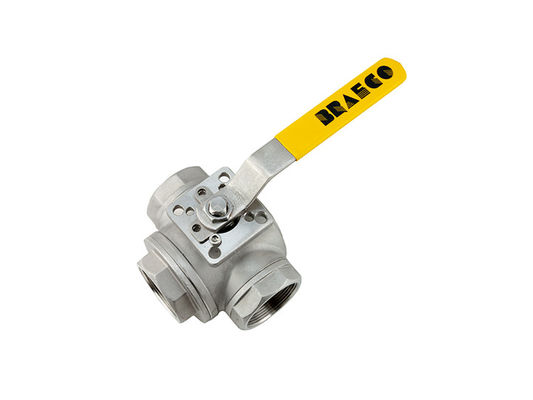

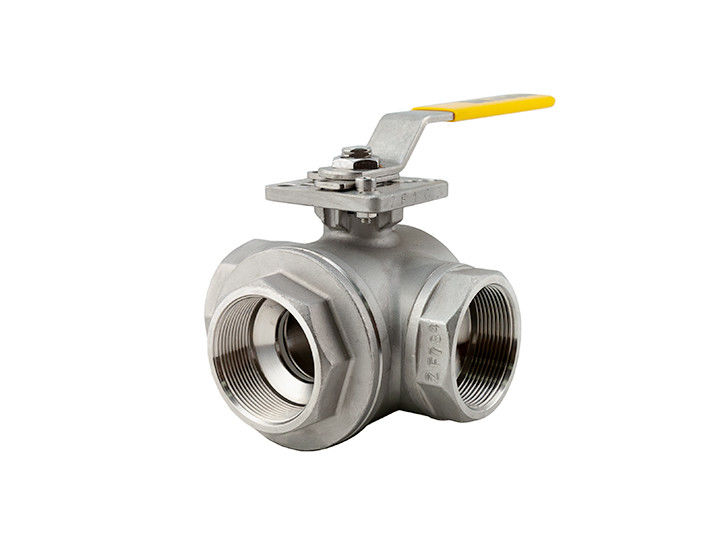

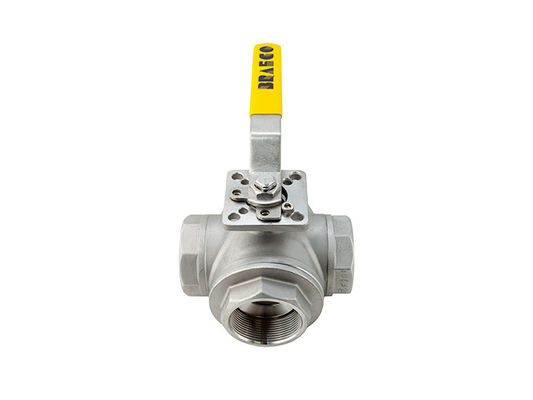

Forged Metal Seated Floating Ball Valve / Flanged Type Wafer Ball Valve



Forged Metal Seated Floating Ball Valve / Flanged Type Wafer Ball Valve



Metal Seated Floating Ball Valve Process



Mold making, Precision casting(Investment Casting), Testing, CNC machining, Pressure and sealing tests, Assembling



Metal Seated Floating Ball Valve Technical Specification



- Nominal diameter: 1/2”-25”

- Applicable Temperature: -29℃～425℃(steel) -40℃～550℃(stainless steel)

- Nominal pressure: 150lbs, 300lbs, 600Lb,900lbs,1500lbs PN16/25/40/64/100/160, JIS 5K /10K/20K

- Applicable Medium: water ,gas,oil,and other causticity medium.



Metal Seated Floating Ball Valve Applications Standard



- Manufacture standard : API 608/ DIN/ BS/JIS

- Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

- Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

- Test: API 598 API 6D/ DIN/ BS/JIS



Metal Seated Floating Ball Valve introduction:



Brass Ball Valve is widely used in Paper Mill,Pharmaceutical Factory, Power Plant and etc





- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Full Bore, Two Piece Design.
- Quarter Turn, Lever Operated.
- Provided with Forged Brass Hard Chrome Plated Ball.
- PTFE Body Rings and Gland Packing.
- Chrome Plated Finish.



Test Pressure (Hydraulic) Shell : 25 kg/cm²g (350 psig) Seat : 16 kg/cm²g (225 psig)



Materials of Construction

Name of Part Material Specification
Stem Forged Brass IS 6912 Gr. FLB
Nut Carbon Steel IS 1367
Washer Carbon Steel IS 1367
Lever Carbon Steel IS 2062
Body & Gland Nut Forged Brass IS 6912 Gr. FLB
Gland Packing PTFE BS EN 12086-1
Ball Forged Brass IS 6912 Gr. FLB
Body Seat Ring PTFE BS EN 12086-1
Bonnet Forged Brass IS 6912 Gr. FLB







Sizes / Dimensions
Inches mm A B C D
1/4 8 47 1/4" 37 90
3/8 10 47 3/8" 37 90
1/2 15 50 1/2" 40 90
3/4 20 58 3/4" 43 120
1 25 67 1" 51 120
1 1/4 32 76 1 1/4" 65 154
1 1/2 40 87 1 1/2" 72 154
2 50 104 2" 80 170
2 1/2 65 139 2 1/2" 102 250



Technical Specification

Nominal pressure(Mpa)	PN	2.5,4.0,6.4
Strength testing pressure(Mpa)	PT	3.8,6.0,9.6
Low pressure seal test(Mpa)		0.6
High pressure seal test(Mpa)		3.0,4.8,7.6
Applicable medium	water, oil, gas, nitric acid, acetic acid
Applicable temperature	-40～180℃



Feature:



- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will

becomes more high with rising of pressure of the middle cavity,



Small Resistance ball valve has the smallest resistance of all the valve, in the case

of reduced bore, the resistance is little still.



- Prompt switch

The ball valve circumrotates in 90°,It work quickly to open or close.





Description:

Brief introduction:

The ball valve is designed and manufactured according well to API 608. Floating ball when small caliber,

and fixed ball when large caliber.



It has fire protection structure and antistatic device. Widely used for petroleum, chemistry, water

treatment industries.



Features:



- Anti-blowout Structure of Valve Stem



When medium pass through the valve, the pressure in valve body may possibly push the stem out, or

when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily

fly out upon disassembling the valve, which can cause injures to human beings, To prevent the

possibilities, a dummy club is packing and thrust bearing are burnt or packing is damaged due to other

causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact

with the upper seal face of valve body. Thus to prevent medium leaking out from the damage packing

position.



- Reliable Seal Structure



The seat is made of PTFE. Because the contact area between seat and the ball will becomes more high

with rising of pressure of the middle cavity, Small Resistance ball valve has the smallest resistance of all

the valve, in the case of reduced bore, the resistance is little still.



- Prompt switch



The ball valve circumrotates in 90°,It work quickly to open or close.



Test Pressure Test Item Shell Test Seal Test Back Seal Test Air Seal Test Medium Water Air Unit MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2 Pressure (Class) 150 3.1 450 2.2 315 2.2 315 0.5-0.7 60-100 300 7.8 1125 5.6 815 5.6 815 400 10.3 1500 7.6 1100 7.6 1100 600 15.3 2225 11.2 1630 11.2 1630 900 23.1 3350 16.8 2440 16.8 2440
