TOBO STEEL GROUP CHINA

|
| Place of Origin: | CHINA |
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | / |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 25workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000000 Piece/Pieces per Month |
| Actuator: | Manual, Pneumatic, Electric | Connection: | Threaded, Socket Weld, Flanged |
|---|---|---|---|
| End Connection: | Female/Male NPT, Socket Weld, Flanged | Flow Characteristics: | Linear, Equal Percentage, Quick Opening |
| Leakage Class: | Class IV, Class VI | Material: | Stainless Steel |
| Operation: | Lever, Gear, Electric | Pressure Rating: | 150-2500 PSI |
| Seal Type: | PTFE, PEEK, Metal | Seat Type: | Soft, Metal |
| Temperature Rating: | Up To 600°F | Valve Body Type: | 2-Way, 3-Way, 4-Way |
| Valve Design: | Floating, Trunnion Mounted | ||
| High Light: | Stainless Steel Threaded Ball Valve,32mm Stainless Steel Ball Valve,Ss 316 Ball Valve |
||

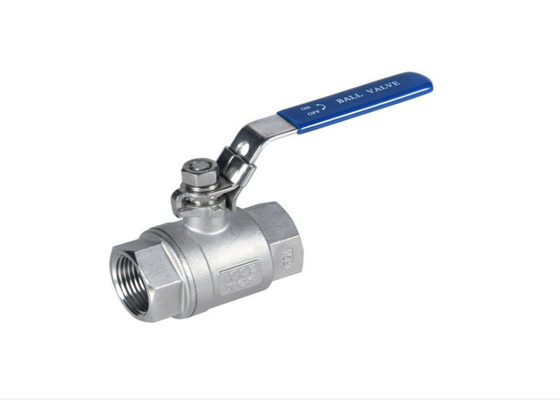

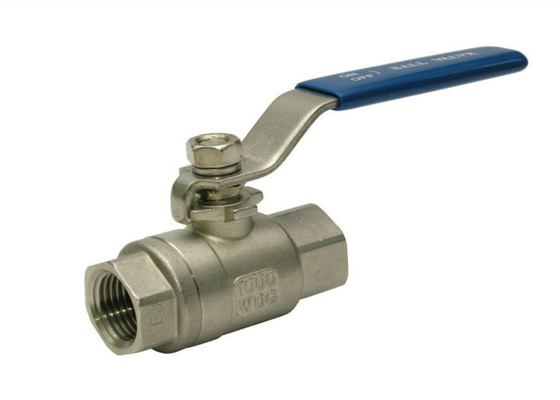

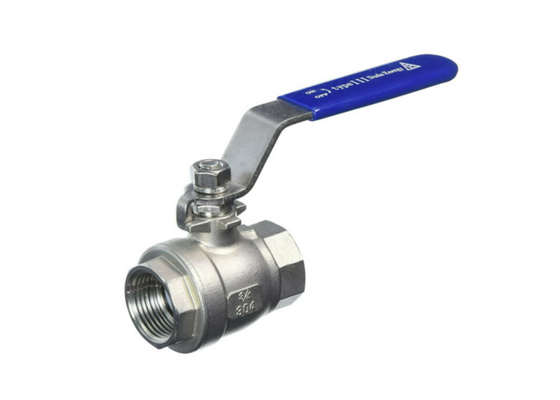

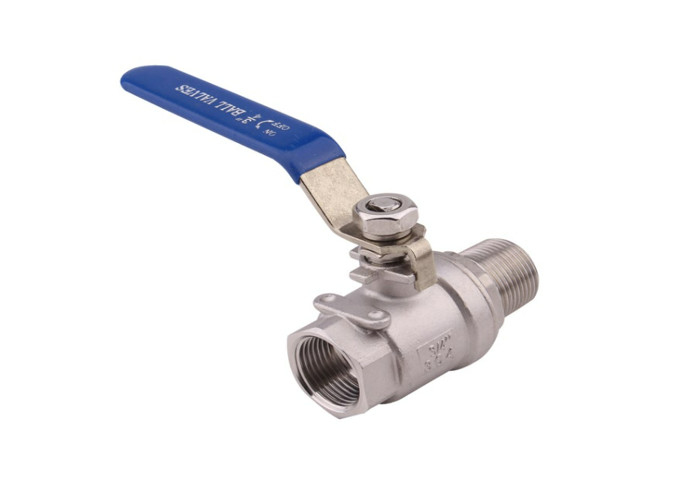

DIN API 6d 3 inch 6 inch DN50 PN40 32mm 400 wog two piece 2pc ss 316 ball valve
| Standard | SS 316 | SS 316L | SS 316H | SS 316TI |
| UNS | S31600 | S31603 | S31609 | S31635 |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4404 / 1.4435 | - | 1.4571 |
| AFNOR | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | - | Z6CNDT17‐12 |
| JIS | SUS 316 | SUS 316L | - | SUS 316Ti |
| GOST | - | 03Ch17N14M3 / 03Ch17N14M2 | - | 08Ch17N13M2T |
| BS | 316S31 / 316S33 | 316S11 / 316S13 | - | 320S31 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | - | X6CrNiMoTi17-12-2 |
SPECIFICATION:
| ITEM: | Three-Piece Stainless Steel 304/316L Sanitary Manual Ball Valve |
| Material of valve body: | 1.4401/304, 1.4404/316L |
| Seal material: | PTFE(FDA 21CFR 177.2600) |
| Size: | 0.5"-2.5'' |
| Max. temperature: | -20~150 degree centigrade (up to diaphragm gasket) |
| Max. pressure: | Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR) |
| Casting valve body: | 1.4404/316L, 1.4401/304 |
| Forging valve body: | 1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5% |
| Connection way: |
Clamped ,Welded, Threaded
|
| Optional operaton: | By pneumatic actuator, electric actuator, control unit, positioner etc. |
| Application: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Certification: | CE, ISO, FDA |
| Standard: | 3A/BPE/DIN/ISO/IDF |
| Packing details: | With bubble pack for each valve. Outside packing is by carton or plywood case. Or be custom-made. |
| Material | AISI304 AISI316L |
| Specification | DN25-100 & 1"-4" |
| Standard | ISO, DIN, 3A,SMS etc |
| Connection | Welded, Clamped, Threaded, Flanged |
| Working Principal | manual operation or driving device operation |
| Flow pattern | straight |
| Seat material | PTFE, PCTFE, PEEK or upon your request |
| Orifice size | 2mm to 4.8mm |
| Body construction | 3-piece precision cast body |
| Temperature | -20degree celsius~135degree celsius |
| No. | Name | QTY | Material |
| 1 | Hexagon Headed Bolt | 4 | A2-70 |
| 2 | Clamp-Clamp | 2 | SS304/SS316L |
| 3 | Seal Ring Face | 2 | PTFE |
| 4 | Bushing | 2 | PTFE |
| 5 | Valve Body | 1 | SS304/SS316L |
| 6 | Sphere | 1 | SS304/SS316L |
| 7 | Elastic Washer | 4 | A2-70 |
| 8 | Hexagon Nut | 4 | A2-70 |
| 9 | Stem | 1 | SS304/SS316L |
| 10 | Stem Seal-I | 1 | PTFE |
| 11 | Stem Seal-II | 1 | PTFE |
| 12 | Stem Anti Wear Pad | 1 | POM |
| 13 | Wave Washer | 1 | SS304 |
| 14 | Stem Seal Lock Nut | 1 | SS304 |
| 15 | Handle Support Pad | 1 | SS304 |
| 16 | Elastic Washer | 1 | A2-70 |
| 17 | Hex Lock Nut | 1 | A2-70 |
| 18 | Handle Assembly | 1 | |
| 19 | Inner Six Angle Screw | 1 | A2-70 |
| 20 | Hexagon Nut | 1 | A2-70 |
Standards : API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
Size : 1/8 to 1”, Custom Sizes available on request
Working Pressure : Up to 6000 PSIG, valves are also available that can handle higher pressure
End Connection : Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female
Temperature Rating : PTFE 450F,(232C)/Grafoil 700 F(371C)
Pressure rating : 150#,300#,600#,800#,1500#
